Jason Custom Motorized Curtain Track

Jason Custom Motorized Curtain Track

Our Jason Custom Motorized Track is fully assembled and pre-programmed. The motor operates on 100-230V and includes a 30-inch power cord. We will provide the appropriate plug (UK, US, EU, or AU standard) based on your shipping address. If you have any special requirements, please add a note to your order.

In addition to operating the track with the controller, our thoughtful Touch-Motion technique allows you to activate or stop the drapery simply by pulling on the panels.

Fit pleated header style curtains.

Max Weight Capacity: 99lbs
Material: Aluminum

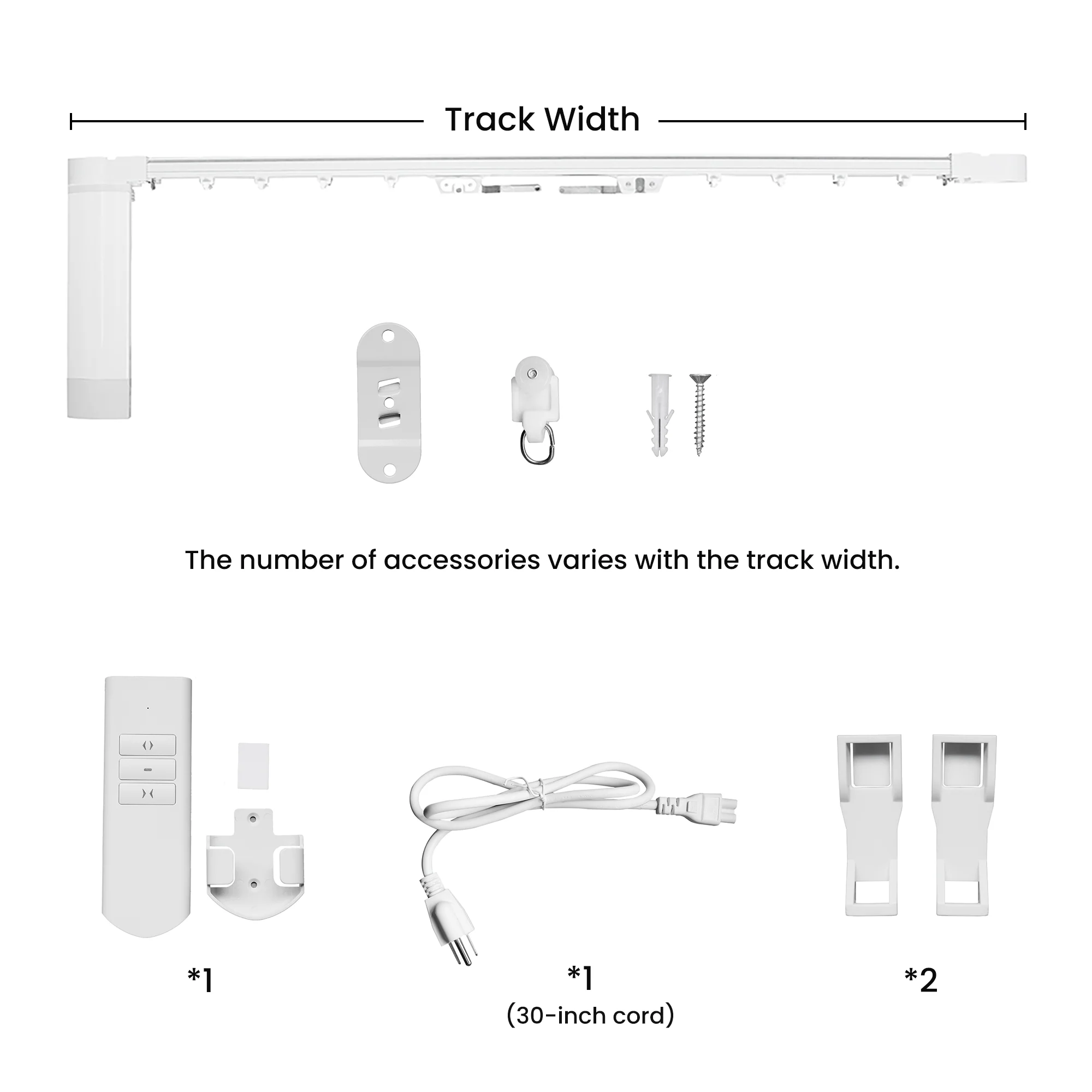

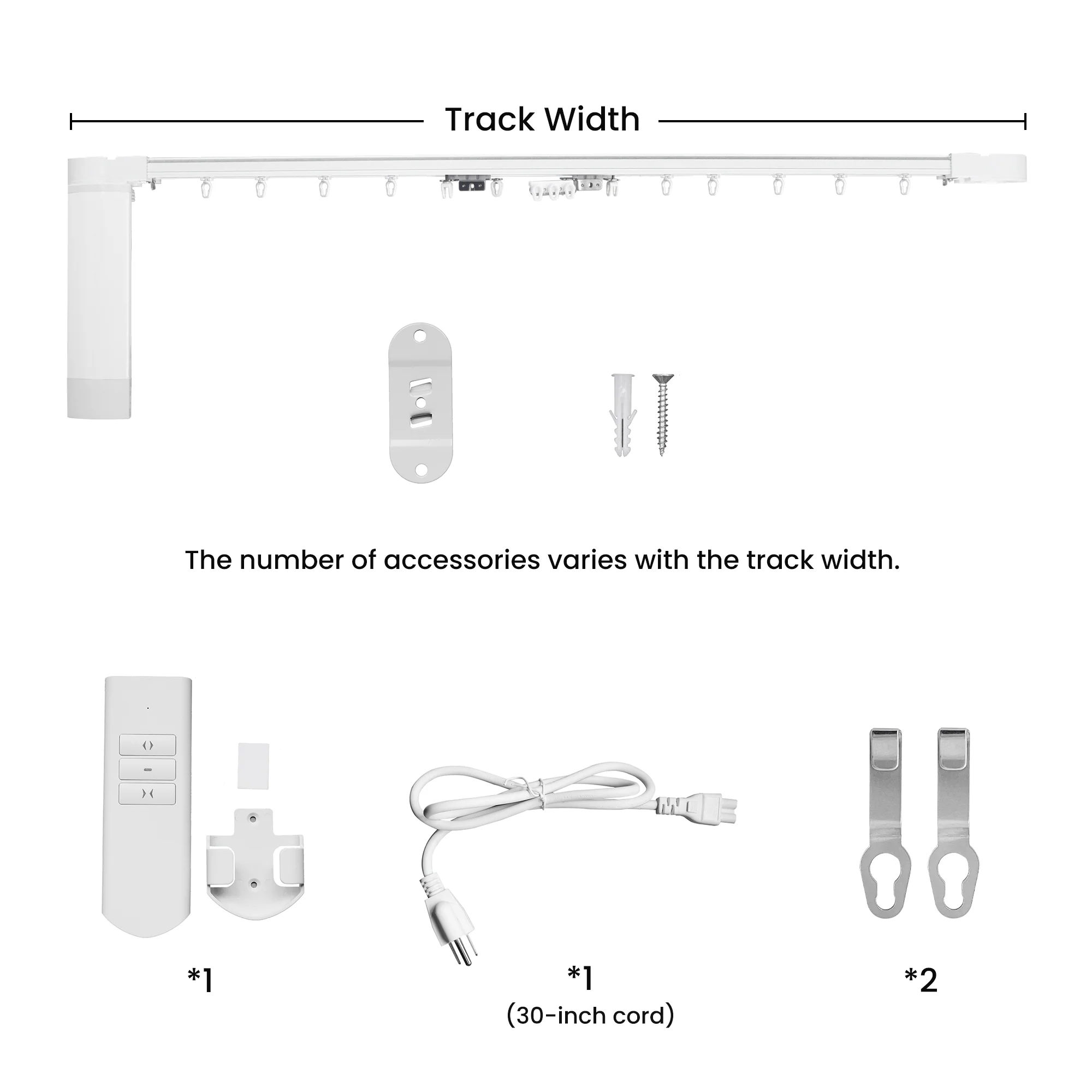

Package Including:
1. Motor
2. Emitter
3. Cord
4. Tracks & Runners (Track exceeding 82" will be spliced for shipping.)

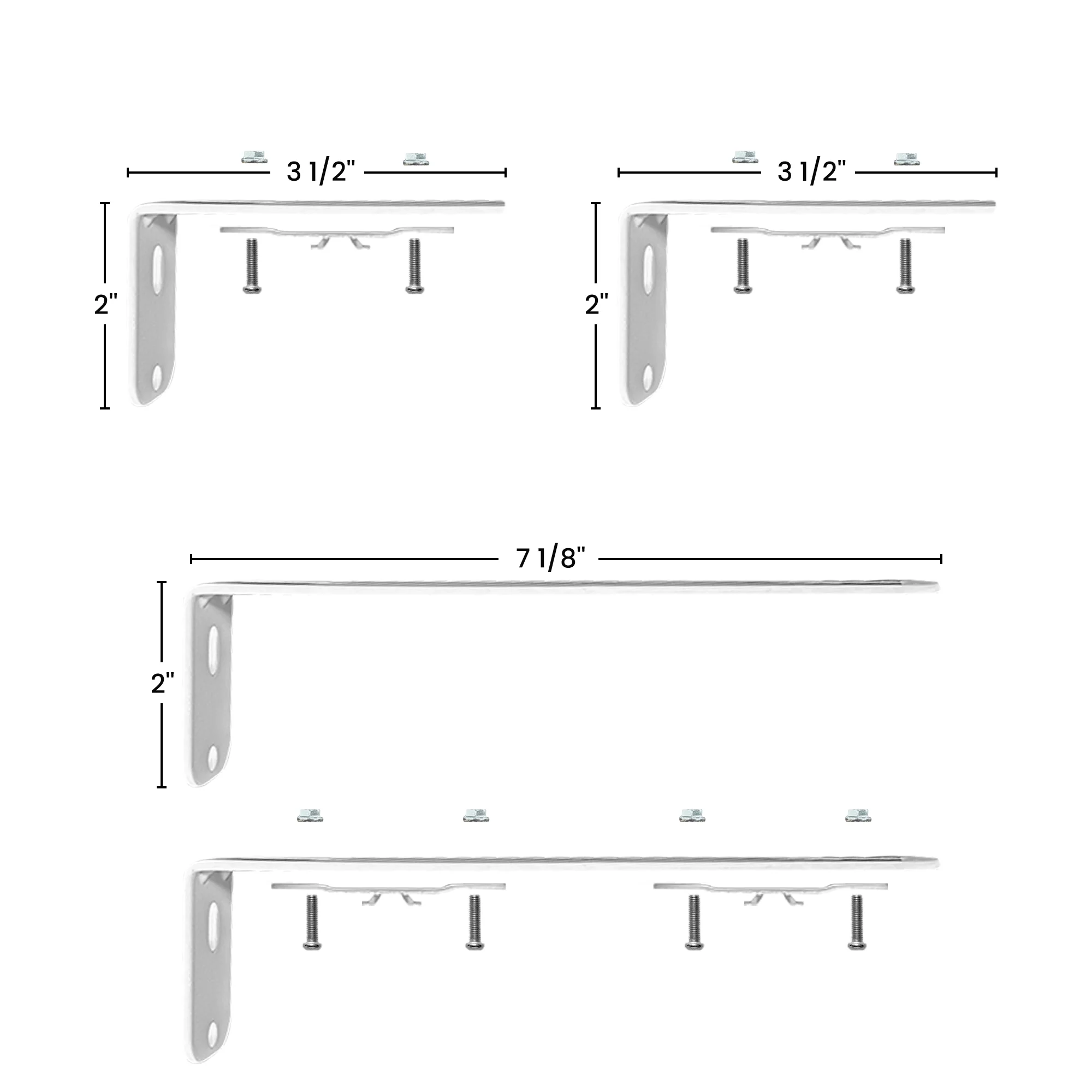

5. Mounting Accessories (Include hold brackets and sets of screws.)
6. Installation Instruction

Tips：

*The screws are M4 size, so use a slightly smaller drill bit to make the pilot holes.

• For hollow walls (metal, wood, or drywall), use screws.
• For solid walls (concrete, brick), use expansion screws.

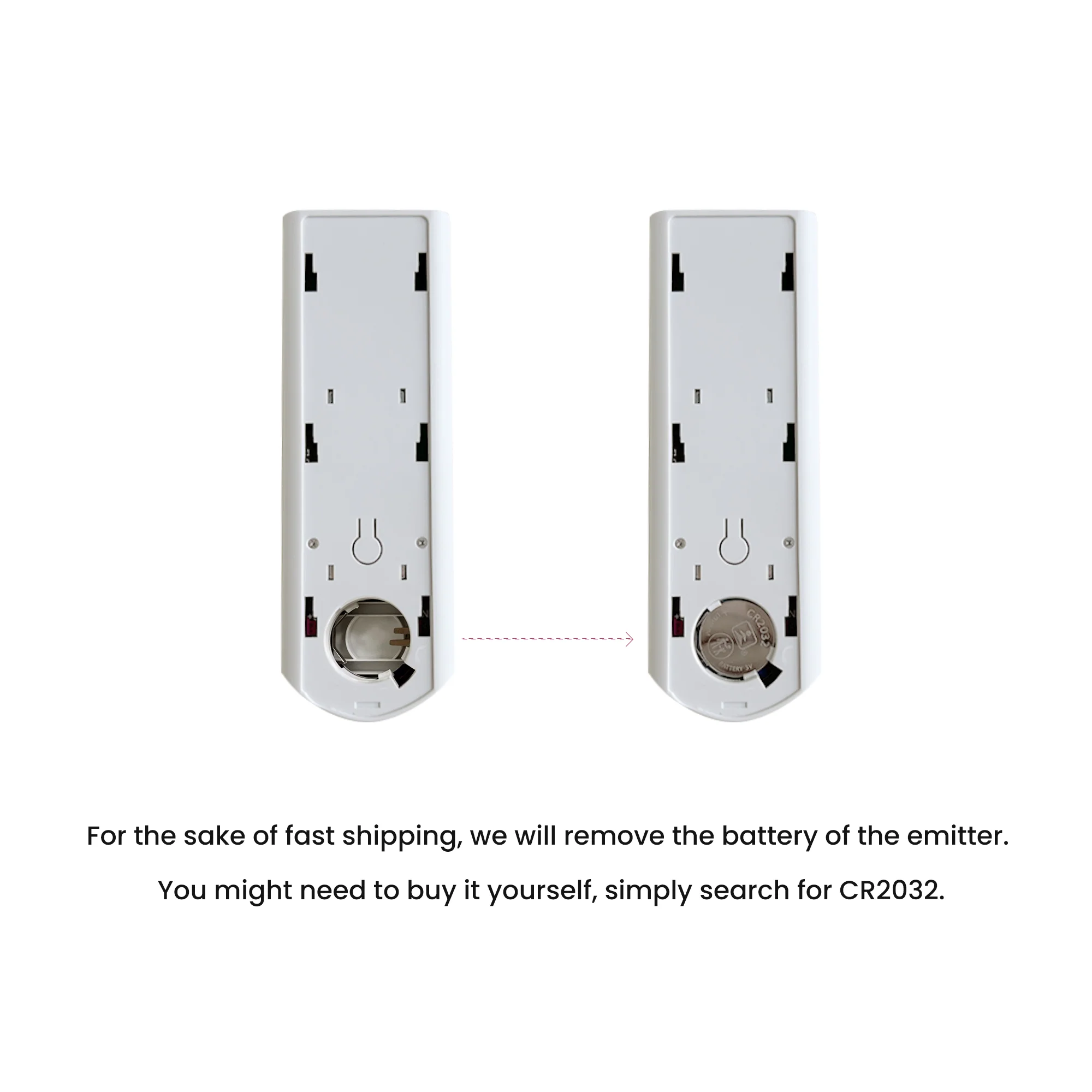

Note: To ensure fast shipping, we have to remove the battery of the emitter. You might need to buy it yourself. Simply search for CR2032.

The number of brackets depends on your track length. For a standard installation, we provide 3 brackets (up to 39 inches), 4 (40-78 inches), 5 (79-117 inches), 6 (118-156 inches), 7 (157-195 inches), 8 (196-234 inches), 9 (235-273 inches), and 10 (274-312 inches), with one additional bracket added for every 39-inch increment thereafter, and the pattern continuing for longer tracks. For a top-mounted double-layer installation, all quantities are doubled.



Custom Width: The track width is customizable. Select the width you want.

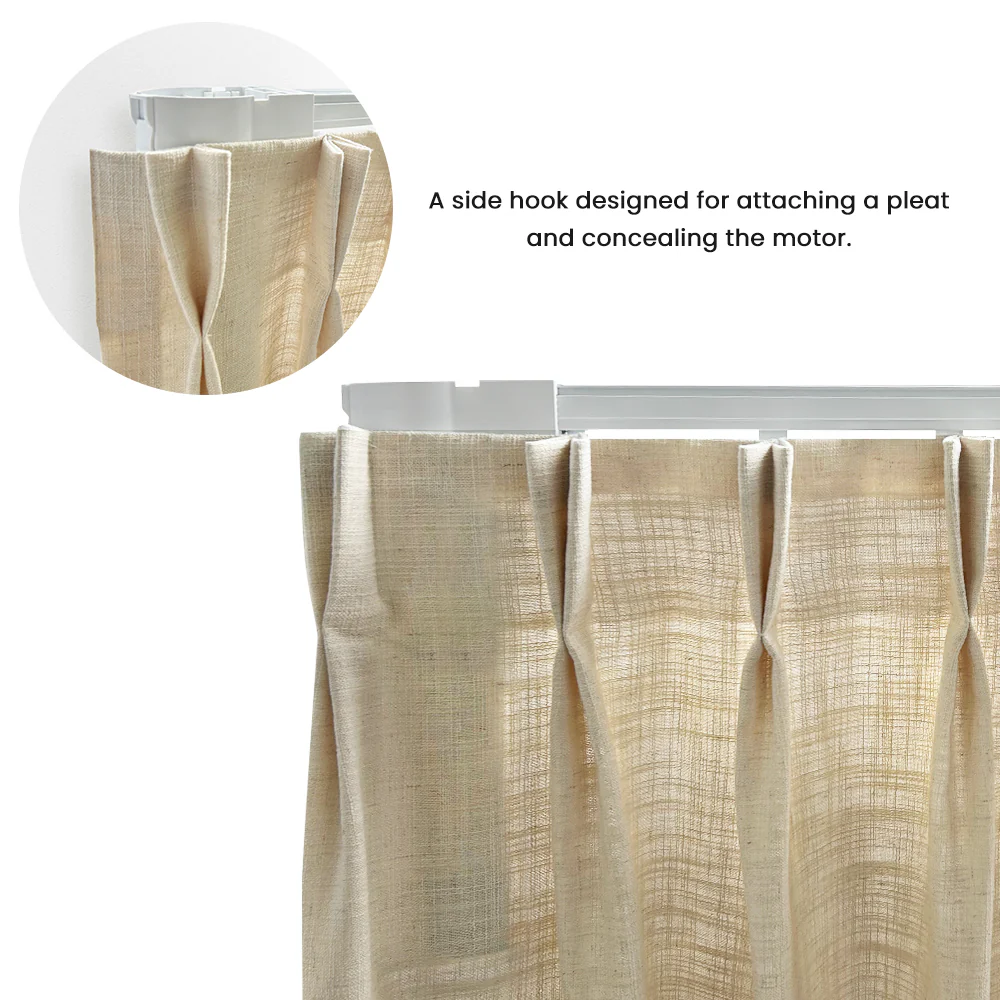

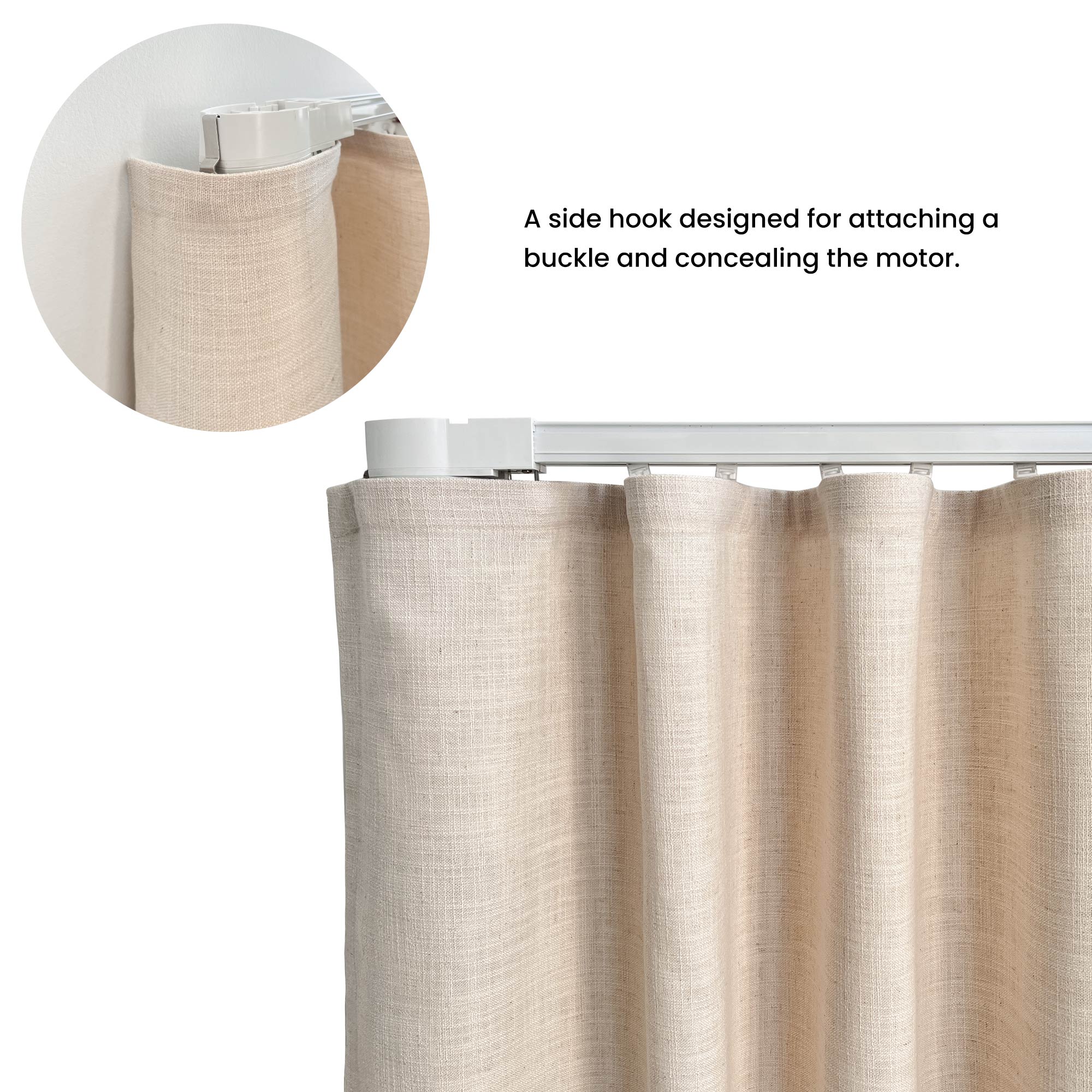

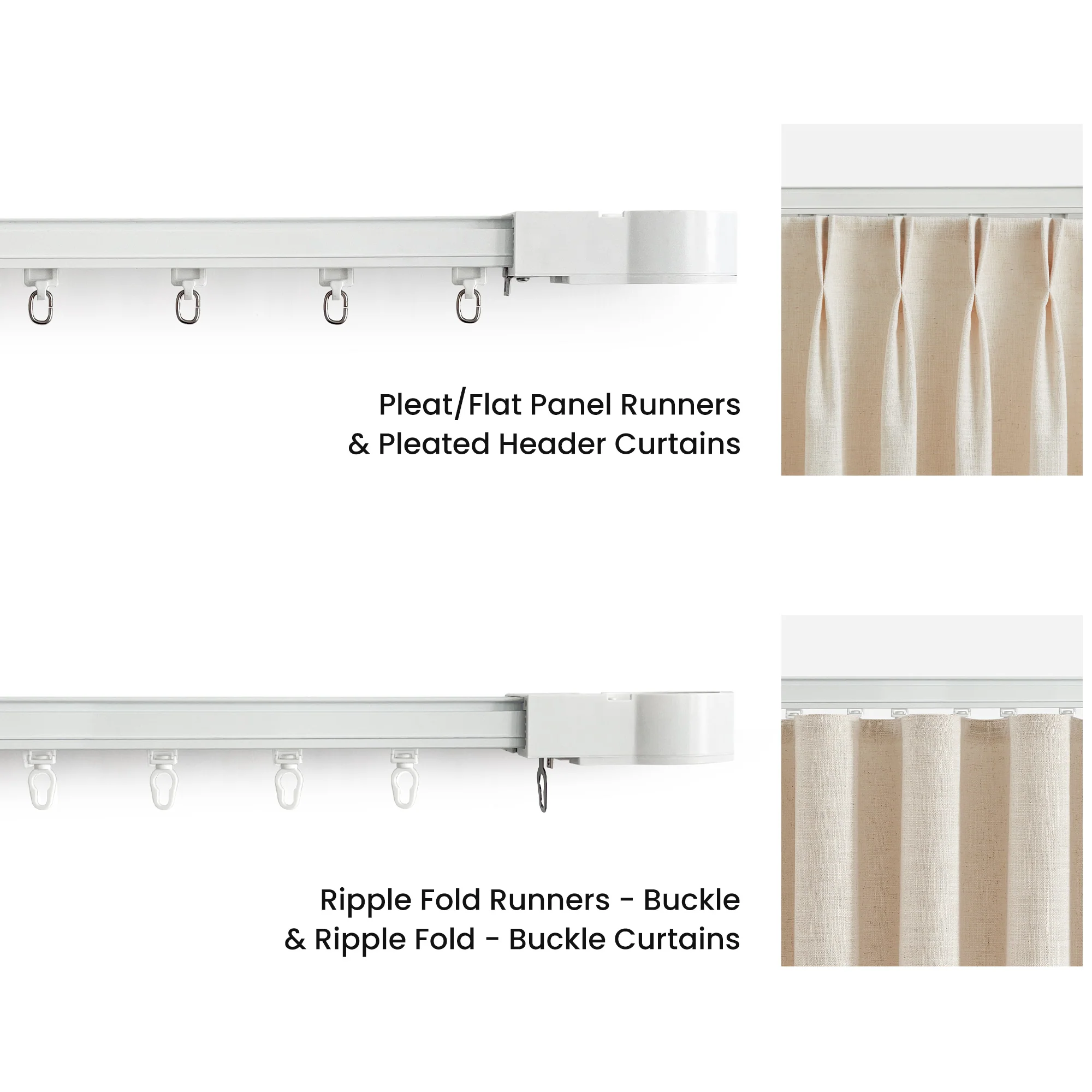

Two Runner Type: Two options are available. Pleat runner fits pinch pleat curtains, box pleat curtains, and euro pleat curtains. Ripple fold - buckle runner(runner space is 6cm) fits the ripple fold buckle tape curtains.

For a complete installation walkthrough that covers all videos below, check out our detailed Jason Custom Motorized Curtain Track Installation Blog

Video about how pleat curtains work with the Jason motorized track.

Video about how the ripple fold curtains work with the Jason motorized track-ceiling mount.

Video about how the ripple fold curtains work with the Jason motorized track-wall mount.

Please order the ripple fold curtain with the track in a single order for a perfect match.

If you order a track and ripple fold curtains in a different order, please email [email protected], and we will double-check with you to ensure the track and ripple curtain match.

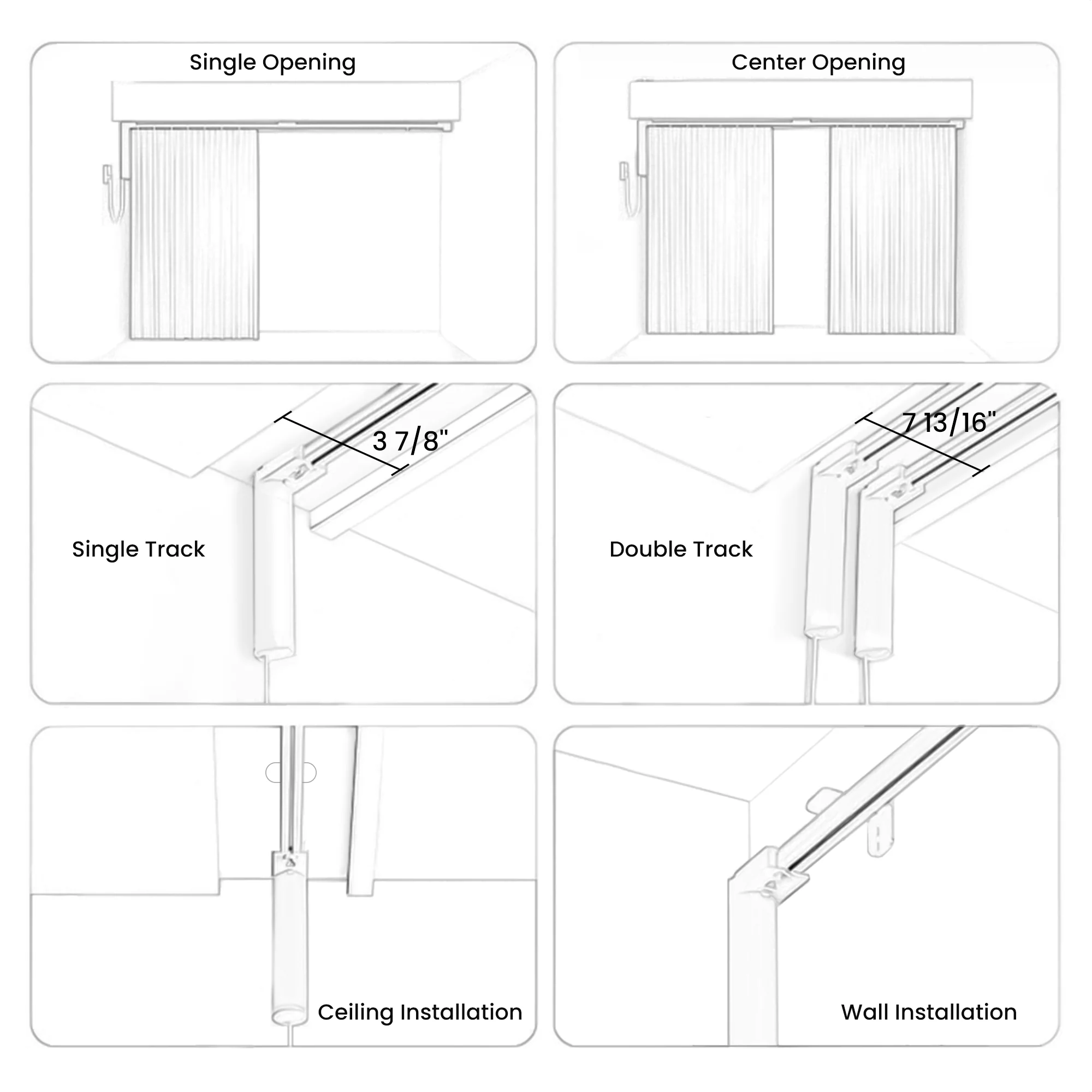

Two-Way Installation: Two options are available. Ceiling installation or Wall installation.

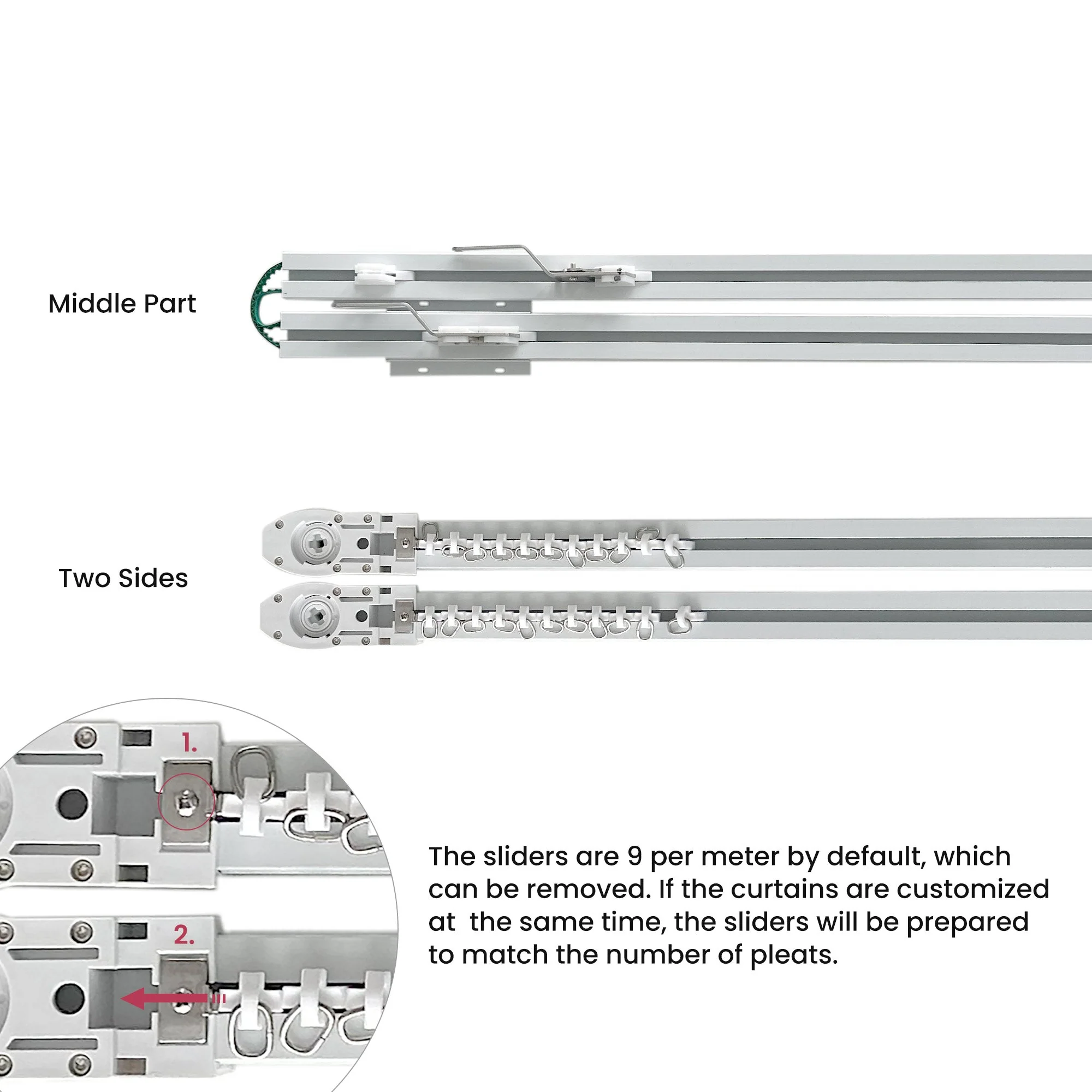

Flexible Opening: You can choose from the Center and Single opening. If you need 2 tracks (one for sheer and the other for drape), please order the Double track.

Silent Operation: Super quiet and smart motorized system. The motor voice is 35db, noise-free.

Easy Installation: The track is fully assembled and pre-programmed with detailed instructions. Easy to start and install.

Light Trigger Mode: Manually pull to trigger the motor, then it will operate automatically.

App Control: Use the Tuya app. Please watch this video to learn how to pair the curtain track with the app.

Size Guide

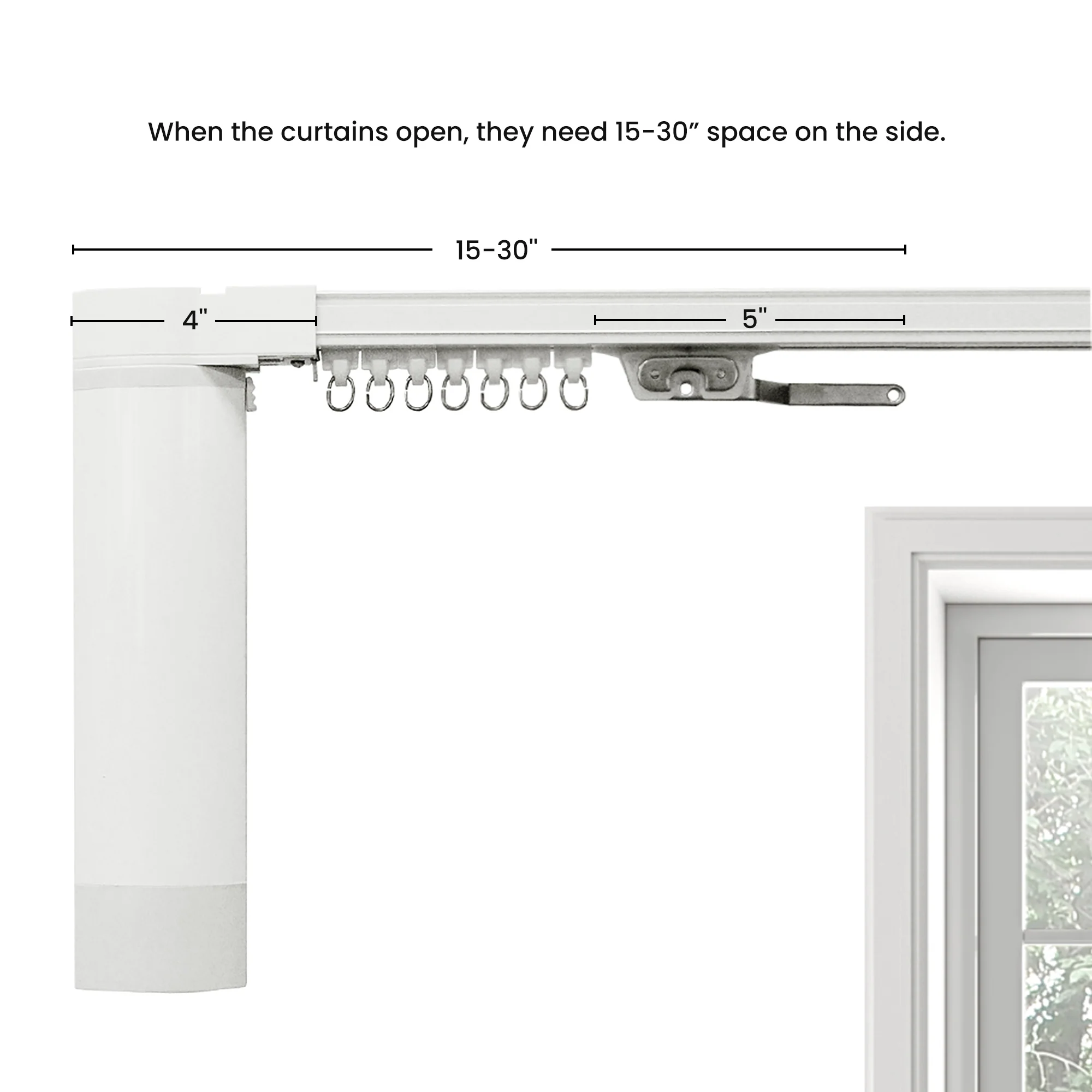

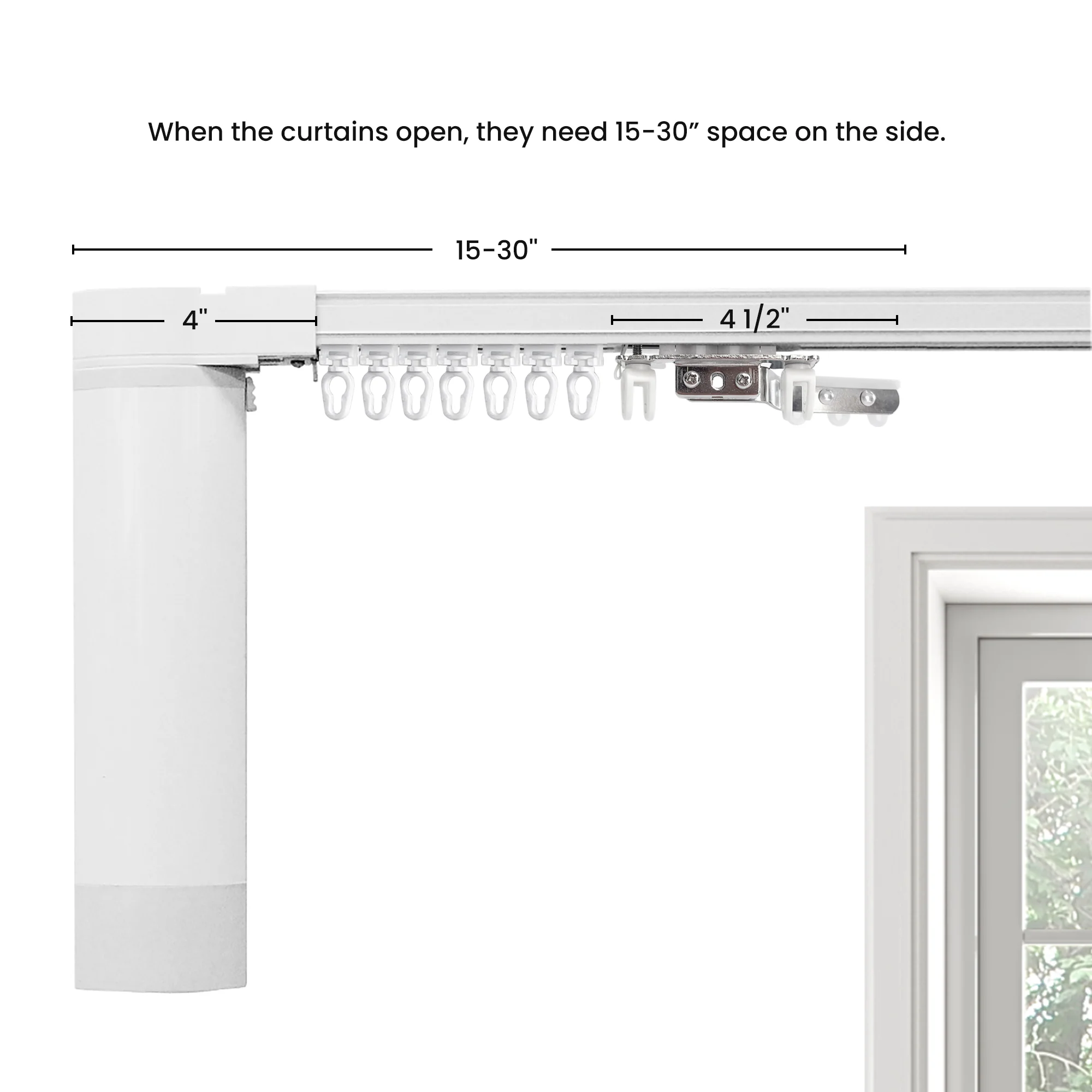

The track shall extend to the window frame 15-30'' at each side to ensure the curtains do not cover the frame. Both ends of the track should be 1'' to the wall.

For example
60'' track is suitable for 20-30'' wide window, 62'' wide wall.
80'' track is suitable for 40-50'' wide window, 82'' wide wall.



5-Year Warranty
Curtarra offers a 5-year warranty on all motors and controls. Specifically, we warrant the motors and controls to be free from defects in material and workmanship under normal and proper use for 5 years commencing with the date each track is ordered. If the product fails within 5 years, we will repair or replace it for free.

Return Policy
Jason Custom Motorized Track is custom-made and is NOT returnable.
